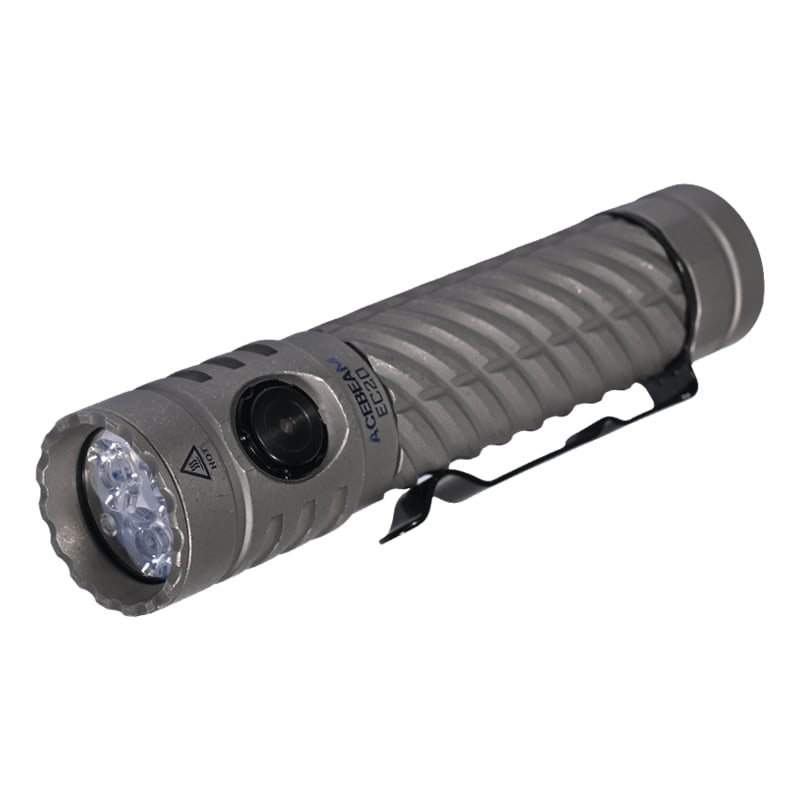

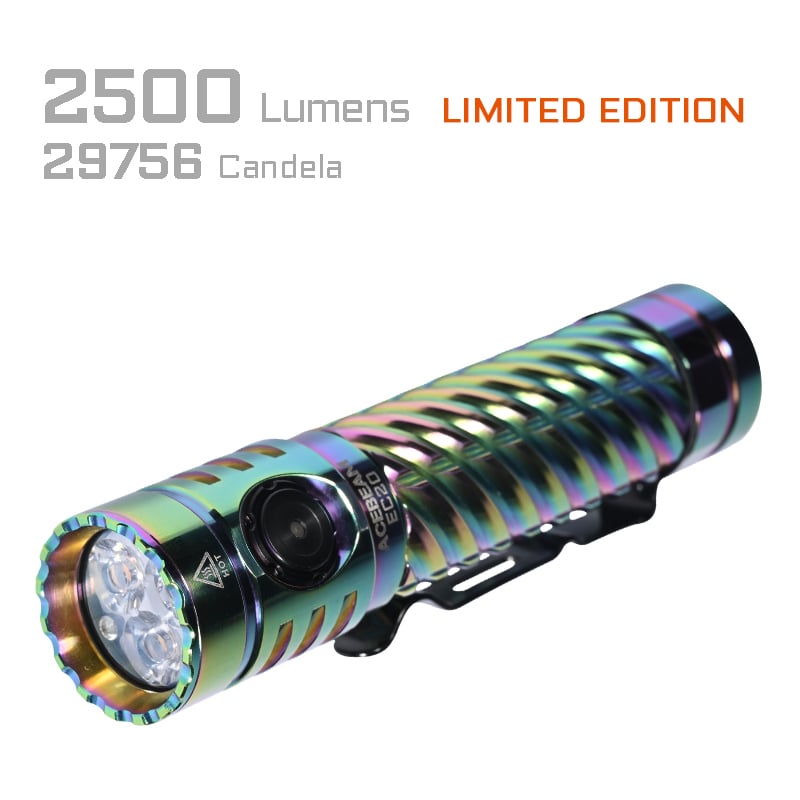

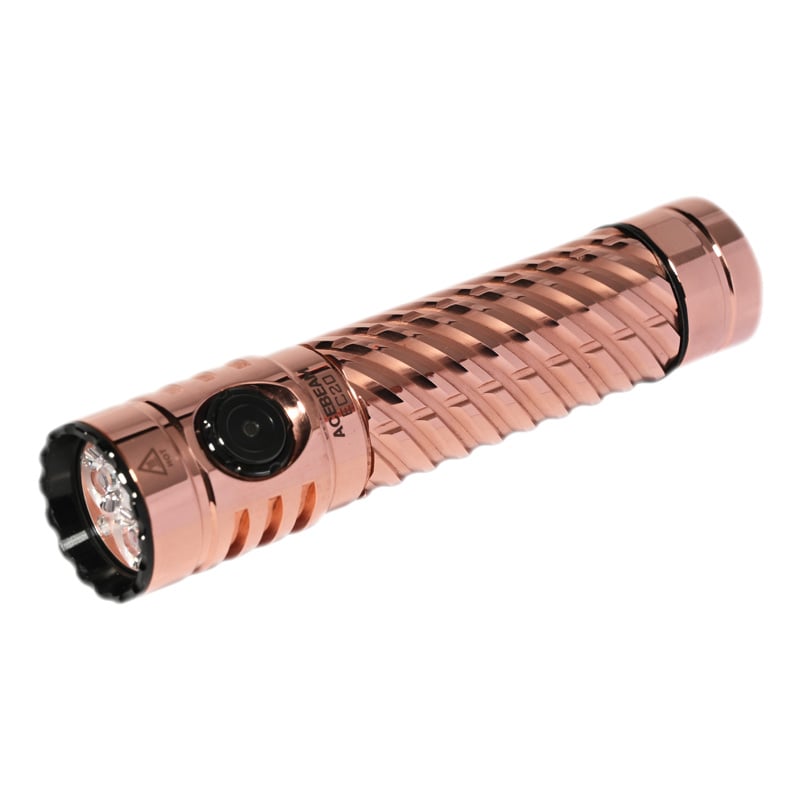

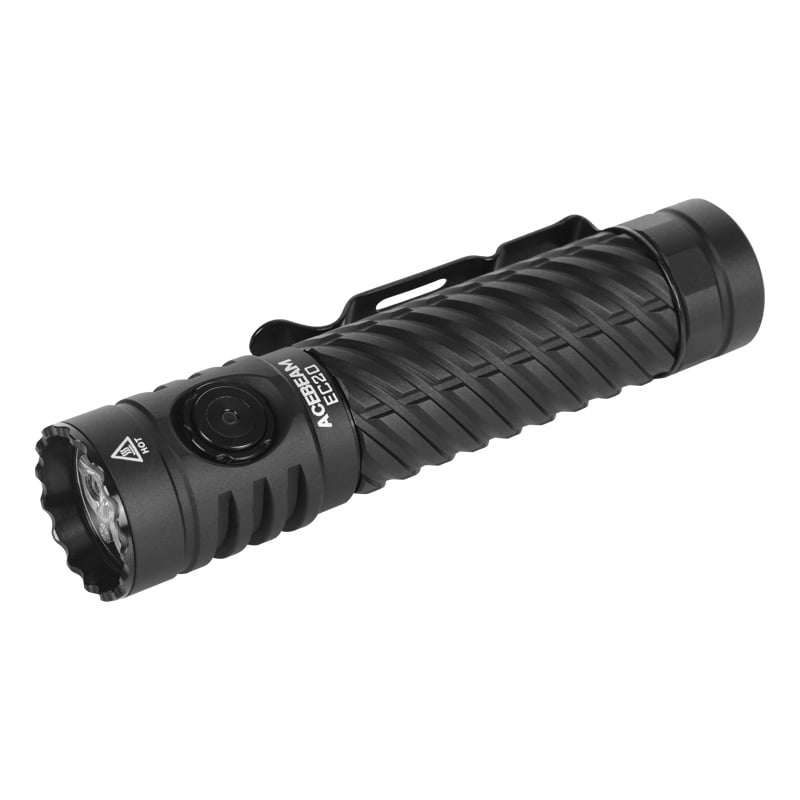

The ACEBEAM EC20 is a compact multi-light-source EDC flashlight built for pocket carry, outdoor work, patrol, camping, fishing, dog walking, and daily emergency use. Its palm-sized body delivers up to 2,800 lumens in the LUXEON HL4X version, while premium SFT-25R and Nichia 519A LED options give buyers a choice between throw, output, and high-CRI color rendering.
The EC20 combines white light with RGB auxiliary lighting, a stainless steel all-in-one switch, three dimming modes, strobe/SOS/beacon functions, a magnetic tail stand, and dual-fuel battery support. It can run on the included USB-C rechargeable 18650 battery or two CR123A batteries, and its IP68-rated aluminum body is designed for rough everyday use.
Features
- Compact multi-light-source EDC flashlight with RGB auxiliary light
- Premium LED options: SFT-25R, Nichia 519A CRI > 90, and LUXEON HL4X 6500K
- Up to 2,800 lumens and 310m beam distance in the LUXEON HL4X version
- SFT-25R option reaches up to 2,500 lumens and 370m beam distance
- Nichia 519A option provides CRI > 90 light with up to 1,900 lumens and 270m beam distance
- All-in-one stainless steel switch, operable with gloves
- Three dimming modes: stepped low-to-high, high-to-low, and stepless dimming
- Six white brightness levels plus Strobe, SOS, and Beacon
- Efficient constant-current, non-PWM circuit for comfortable output
- Dual power: included USB-C rechargeable 18650 battery or 2 x CR123A batteries
- Magnetic tail stand, one-way clip, HAIII hard-anodized AL6061-T6 aluminum body
- 1.5m impact resistance and IP68 dust/water protection, submersible to 2m for up to 30 minutes
Battery
- Included: one high-capacity 18650 battery pack with built-in USB-C port
- Compatible: 2 x CR123A non-rechargeable batteries
Size
- Length: 109.51mm / 4.31in
- Head diameter: 25.4mm / 1in
- Tail diameter: 24mm / 0.94in
- Weight: 116g / 4.09oz; Titanium 148g / 5.22oz; Stainless Steel 203g / 7.15oz, including battery
Outputs
3 x SFT-25R HI 6500K LEDs: Ultra Low 1 lumen / 36h; Low 25 lumens / 24h; Med1 180~25 lumens / 83m; Med2 540~25 lumens / 125m; High 1300~650~25 lumens / 187m; Turbo 2500~650~25 lumens / 370m; Strobe, SOS, and Beacon modes available.
3 x Nichia 519A LEDs CRI > 90: Ultra Low 1 lumen / 36h; Low 25 lumens / 24h; Med1 140~25 lumens / 58m; Med2 400~25 lumens / 78m; High 1000~470~25 lumens / 110m; Turbo 1900~470~25 lumens / 270m.
3 x LUXEON HL4X 6500K LEDs: Ultra Low 1 lumen / 36h; Low 25 lumens / 24h; Med1 180~25 lumens / 60m; Med2 540~25 lumens / 85m; High 1400~650~25 lumens / 120m; Turbo 2800~650~25 lumens / 310m.
